MEDIUM-VOLTAGE COPPER CABLE

Our medium-voltage copper cables are engineered for optimal electrical distribution. These cables offer high insulation resistance and low maintenance requirements, making them the perfect choice for your medium-voltage projects. For a full range of MV solutions in 11kV, 22kV and 33kV, contact our team.

C 16.png

Single Core Copper

​

Compacted, circular-stranded, plain-annealed Cu/XLPE/CWS(10.1kA/1s)/PVC/HDPE

​

Standards : AS/NZS 1429.1

Conductor:Class 2 circular plain copper

Conductor screen: Cross-linked extruded semiconductive screen

Insulation: XLPE X-90 in accordance with AS/NZS 3808.

Insulation screen: Cross-linked extruded semiconductive screen

Water-blocking tape: Semiconductive water-swellable tape

Metallic screen: Plain annealed copper wires complying with AS/NZS 1125.

Binder tapes: Non-hygroscopic binder tape

Inner sheath:  PVC 5V-90 complying with AS/NZS 3808.

Outer sheath: HDPE complying with AS/NZS 3808.

Rated voltage U0/U (Um): 6.35/11 (12) kV

Test voltage (5 min and 15 min tests): 21 kV

Test voltage (4 hour tests): 25 kV

Max. conductor temperature (continuous operation): +90°C

Max. conductor temperature (short-circuit for 5 sec): +250°C

​

Data sheet

C 17.png

3 Core Copper

​

3 Core compacted, circular-stranded, plain-annealed Cu/XLPE/CWS(10.1kA/1s)/PVC/HDPE

​

Standards : AS/NZS 1429.1

Conductor : Class 2 circular plain copper

Conductor screen: Cross-linked extruded semiconductive screen

Insulation: XLPE X-90 in accordance with AS/NZS 3808.

Insulation screen: Cross-linked extruded semiconductive screen

Water-blocking tape: Semiconductive water-swellable tape

Metallic screen: Plain annealed copper wires complying with AS/NZS 1125.

Binder tapes: Non-hygroscopic binder tape

Inner sheath:  PVC 5V-90 complying with AS/NZS 3808.

Outer sheath: HDPE complying with AS/NZS 3808.

Rated voltage U0/U (Um): 6.35/11 (12) kV

Test voltage (5 min and 15 min tests): 21 kV

Test voltage (4 hour tests): 25 kV

Max. conductor temperature (continuous operation): +90°C

Max. conductor temperature (short-circuit for 5 sec): +250°C

​

Data sheet

MEDIUM-VOLTAGE ALUMINIUM CABLE

Our medium-voltage aluminium cables are optimised for New Zealand conditions, providing excellent insulation and durability. With a focus on safety and performance, they deliver seamless energy transmission.

For a full range of MV solutions in 11kV, 22kV and 33kV, contact our team.

AL 6.png

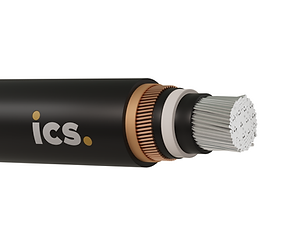

Single Core Aluminium

​

6.35/11kV compacted, circular-stranded Al/XLPE/CWS(10.1kA/1s)/PVC/HDPE

​

Standards : AS/NZS 1429.1

Conductor: Aluminium 1350 AS/NZS 1125

Conductor screen: Cross-linked extruded semiconductive screen

Insulation: XLPE X-90 in accordance with AS/NZS 3808.

Insulation screen: Cross-linked extruded semiconductive screen

Water-blocking tape: Semiconductive water-swellable tape

Metallic screen: Plain annealed copper wires complying with AS/NZS 1125.

Binder tapes: Non-hygroscopic binder tape

Inner sheath:  PVC 5V-90 complying with AS/NZS 3808.

Outer sheath: HDPE complying with AS/NZS 3808.

Rated voltage U0/U (Um): 6.35/11 (12) kV

Test voltage (5 min and 15 min tests): 21 kV

Test voltage (4 hour tests): 25 kV

Max. conductor temperature (continuous operation): +90°C

Max. conductor temperature (short-circuit for 5 sec): +250°C

​

Data sheet

AL 7.png

3 Core Aluminium

​

3 Core compacted, circular-stranded Al/XLPE/CWS(10.1kA/1s)/PVC/HDPE

​

Conforming to : AS/NZS 1429.1

Conductor: Aluminium 1350 AS/NZS 1125

Conductor screen: Cross-linked extruded semiconductive screen

Insulation: XLPE X-90 in accordance with AS/NZS 3808.

Insulation screen: Cross-linked extruded semiconductive screen

Water-blocking tape: Semiconductive water-swellable tape

Metallic screen: Plain annealed copper wires complying with AS/NZS 1125.

Binder tapes: Non-hygroscopic binder tape

Inner sheath:  PVC 5V-90 complying with AS/NZS 3808.

Outer sheath: HDPE complying with AS/NZS 3808.

Rated voltage U0/U (Um): 6.35/11 (12) kV

Test voltage (5 min and 15 min tests): 21 kV

Test voltage (4 hour tests): 25 kV

Max. conductor temperature (continuous operation): +90°C

Max. conductor temperature (short-circuit for 5 sec): +250°C



Data sheet
