LOW-VOLTAGE COPPER CABLE

Our low-voltage copper cables deliver superior conductivity and longevity. These cables ensure minimal energy loss and maximum durability, making them the ideal solution for your low-voltage needs.

As well as our standard stocked offering, you can contact our team for custom cable construction - tailored to suit you project requirements.

C 1.png

Single Core Circular Stranded CU XLPE PVC

​

Single Core compacted, circular-stranded Cu/XLPE/PVC

​

Standards: AS/NZS 5000.1

Conductor: Plain annealed copper wire Class 2 AS/NZS 1125

Insulation: XLPE X-90 AS/NZS 3808

Sheath: PVC 5V-90 Black

Test voltage: 3.5kV/5min AS/NZS 1660

​

​

Data sheet

C 12.png

Single Core CU Flexible

​

Single Core - CLASS 5 CU X-HF-110/HFS-110-TP

​

Standards: ASNZS5001.1

Conductor: Plain annealed Copper Cicular Compacted Class 5 ASNZS1125

Insulation X-HF-110 AS/NZS3808

Sheath: HFS-110-TP AS/NZS3808

Test voltage: 3.5kV/5min

​

​

Data sheet

C 2.png

2 Core + E CU PVC Circular TPS

​

Non-compacted, circular-stranded, plain-annealed Cu/PVC/PVC

​

Standards: AS/NZS 5000.1

Core colour: Red, Black (2Core), Red, White, Blue (3Core), Red, White, Blue, Black (4Core), Green/Yellow (EarthCore)

Conductor: Plain annealed copper wire Class 2 AS/NZS 1125

Insulation: PVC V-90 Or XLPE AS/NZS 3808

Sheath: PVC 5V-90 Black AS/NZS 3808

Test voltage: 3.5kV/5min

​

​

Data sheet

C 3.png

3 Core + E CU PVC Circular TPS

​

Non-compacted, circular-stranded, plain-annealed Cu/XLPE/PVC

​

Standards: AS/NZS 5000.1

Core colour: Red, Black (2Core), Red, White, Blue (3Core), Red, White, Blue, Black (4Core), Green/Yellow (EarthCore)

Conductor: Plain annealed copper wire Class 2 AS/NZS 1125

Insulation: PVC or XLPE X-90 AS/NZS 3808

Sheath: PVC 5V-90 Black AS/NZS 3808

Test voltage: 3.5kV/5min

​

​

Data sheet

C 4.png

4 Core + E CU PVC Circular TPS

​

Non-compacted, circular-stranded, plain-annealed Cu/XLPE/PVC

​

Standards: AS/NZS 5000.1

Core colour: Red, Black (2Core), Red, White, Blue (3Core), Red, White, Blue, Black (4Core), Green/Yellow (EarthCore)

Conductor: Plain annealed copper wire Class 2 AS/NZS 1125

Insulation: PVC or XLPE X-90 AS/NZS 3808

Sheath: PVC 5V-90 Black AS/NZS 3808

Test voltage: 3.5kV/5min

​

​

Data sheet

C 10.png

2 Core CU Vector Service

​

Non-compacted, circular-stranded, plain-annealed Cu/XLPE/PVC

​

Standards: AS/NZS 4026 & 5000.1

Core colour: Red, Black (2Core)

Conductor: Plain annealed copper wire Class 2 AS/NZS 1125

Insulation: PVC or XLPE X-90 AS/NZS 3808

Sheath: PVC 5V-90 Black AS/NZS 3808 with Min 2% carbon black

Test voltage: 3.5kV/5min

​​

Data sheet

C 11.png

4 Core CU Vector Service

​

Non-compacted, circular-stranded, plain-annealed Cu/XLPE/PVC

​

Standards: AS/NZS 4026 & 5000.1

Core colour: Red, Black (2Core)

Conductor: Plain annealed copper wire Class 2 AS/NZS 1125

Insulation: XLPE X-90 AS/NZS 3808

Sheath: PVC 5V-90 Black AS/NZS 3808 with Min 2% carbon black

Test voltage: 3.5kV/5min

​

​

Data sheet

single core neutral red.png

Single CU Neutral Screen PVC



Non-compacted, circular-stranded, plain-annealed Cu/PVC/CuNS/PVC

​

Standards: AS/NZS 4961-2003

Core colour: Red (1Core), Red, White (2Core), Red, White, Blue (3Core), Red, White, Blue, Black (4Core)

Conductor: Plain annealed copper wire Class 2 AS/NZS 1125

Insulation: PVC V-90 or XLPE X-90 AS/NZS 3808

Sheath: PVC V-90 Black AS/NZS 3808, 1.8mm and 3.2mm

Test voltage: 3.5kV/5min

​

​

Data sheet

2 core neutral red white.png

2 Core CU Neutral Screen XLPE

​

Non-compacted, circular-stranded, plain-annealed Cu/XLPE/CuNS/PVC

​

Standards: AS/NZS 4961-2003

Core colour: Red (1Core), Red, White (2Core), Red, White, Blue (3Core), Red, White, Blue, Black (4Core)

Conductor: Plain annealed copper wire Class 2 AS/NZS 1125

Insulation: PVC V-90 or XLPE X-90 AS/NZS 3808

Sheath: PVC V-90 Black AS/NZS 3808, 1.8mm and 3.2mm

Test voltage: 3.5kV/5min

​

​

Data sheet

3 core neutral red white blue.png

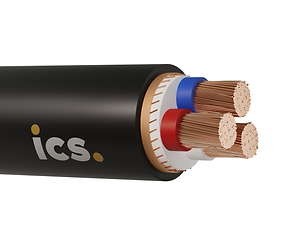

3 Core CU Neutral Screen XLPE

​

Non-compacted, circular-stranded, plain-annealed Cu/XLPE/CuNS/PVC

​

Standards: AS/NZS 4961-2003

Core colour: Red (1Core), Red, White (2Core), Red, White, Blue (3Core), Red, White, Blue, Black (4Core)

Conductor: Plain annealed copper wire Class 2 AS/NZS 1125

Insulation: PVC V-90 or XLPE X-90 AS/NZS 3808

Sheath: PVC V-90 Black AS/NZS 3808, 1.8mm and 3.2mm

Test voltage: 3.5kV/5min

​

​

Data sheet

4 core neutral screen.png

4 Core Copper NS

​

Non-compacted, circular-stranded, plain-annealed Cu/XLPE/CuNS/PVC

​

Standards: AS/NZS 4961-2003

Core colour: Red (1Core), Red, White (2Core), Red, White, Blue (3Core), Red, White, Blue, Black (4Core)

Conductor: Plain annealed copper wire Class 2 AS/NZS 1125

Insulation: PVC V-90 or XLPE X-90 AS/NZS 3808

Sheath: PVC V-90 Black AS/NZS 3808, 1.8mm and 3.2mm

Test voltage: 3.5kV/5min

​​

Data sheet

C 15.png

GY Earth

​

Single Core non-compacted, circular-stranded, plain-annealed Cu/PVC (GN/Y) Earth

​

Standards: AS/NZS 5000.1

Conductor: Plain annealed Copper

Sheath: PVC V-90 Green/Yellow

Test voltage: 3.5kV/5min

​

​

Data sheet

C 13.png

Single Core CU Fire Rated

​

Single Core - CLASS 5 CU X-HF-110/HFS-110-TP

​

Standards: ASNZS5001.1, ASNZS3013 - WS52W

Conductor: Plain annealed Copper Cicular Compacted Class 5 ASNZS1125

Insulation X-HF-110 AS/NZS3808

Sheath: HFS-110-TP AS/NZS3808

Test voltage: 3.5kV/5min

​

​

Data sheet

C 14.png

4 + E Core CU Fire Rated

​

Multi Core - CLASS 5 CU X-HF-110/HFS-110-TP

​

Standards: ASNZS5001.1, ASNZS3013 - WS52W

Conductor: Plain annealed Copper Cicular Compacted Class 5 ASNZS1125

Insulation X-HF-110 AS/NZS3808

Sheath: HFS-110-TP AS/NZS3808

Test voltage: 3.5kV/5min

Test voltage: 3.5kV/5min

​

Data sheet

C 9.png

CU SWA

​

Non-compacted, circular-stranded, plain-annealed Cu/PVC/SWA/PVC

​

Standards: AS/NZS 5000.1

Core colour: Red, Black (2Core), Red, White, Blue (3Core), Red, White, Blue, Black (4Core), Green/Yellow (EarthCore)

Conductor: Plain annealed copper wire Class 2 AS/NZS 1125

Insulation: PVC V-90 AS/NZS 3808

Armour: Low-carbon, galvanized steel-wire

Sheath: PVC 5V-90 Black AS/NZS 3808

​

​

Data sheet

C 8.png

CU Control

​

Non-compacted, circular-stranded, plain-annealed Cu/PVC/PVC

​

Standards: AS/NZS 5000.1

Core colour: White numbered (numeral and word black on white)

Conductor: Plain annealed copper wire Class 2 AS/NZS 1125

Insulation: PVC V-90 White

Sheath: PVC 5V-90 Black AS/NZS 3808

​

​

​

19 core traffic orange.png
36 core traffic orange.png

Traffic Signal Cable

​​

19-Core Traffic Signal Cable



Standards: ASNZS2276.1, ASNZS1125, ASNZS3808

Conductor: Copper

Insulation:  V90-SPVC

Sheath:  PVC

Rated voltage: 0.6/1kV

​​

​

Data sheet

Traffic Signal Cable

​​

36-Core Traffic Signal Cable

​

Standards: ASNZS2276.1, ASNZS1125, ASNZS3808

Conductor: Copper

Insulation:  V90-SPVC

Sheath:  PVC (5V-90), Orange

Rated voltage: 0.6/1kV

​​

​

Data sheet

LOW-VOLTAGE ALUMINIUM CABLE

Engineered to deliver exceptional performance and efficiency, our low-voltage aluminium cable is designed for various applications, and offers superior conductivity, corrosion resistance, and ease of installation.

As well as our standard stocked offering, you can contact our team for custom cable construction - tailored to suit you project requirements.

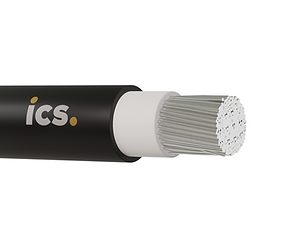

Al Single Core Circular Stranded XLPE PVC

​

Compacted, circular-stranded Al/XLPE/PVC

​

Standards: AS/NZS 5000.1

Conductor: Al 1350 AS/NZS 2848.1

Insulation: XLPE X-90 AS/NZS 3808

Sheath: PVC 5V-90 Black AS/NZS 3808

Test voltage: 3.5kV/5min

​​

Data sheet

AL 1.png
AL 2.png

Al Four Core Sector Standed XLPE PVC

​

Sector-shaped, stranded Al/XLPE/PVC

​

Standards AS/NZS 4026

Conductor: Stranded 90o sector-shaped Al 1350 AS/NZS 2848.1

Insulation: XLPE X-90 AS/NZS 3808

Sheath: PVC 5V-90 Black AS/NZS 3808

Test voltage: 3.5kV/5min

​

​

Data sheet

AL 5.png

Single Core Al Flexible

​

Single Core - CLASS 5 Al X-HF-110/HFS-110-R

​

Stanards AS/NZS 5000.1

Conductor: Al H4 Grade Class 5 AS/NZS1125

Insulation: X-HF-110 White AS/NZS 3808

Insulation: XLPE X-90 AS/NZS 3808

Sheath: HFS-110-R Black AS/NZS 3808

Test voltage: 3.5kV/5min

​



Data sheet

single core neutral red alu.png

Single Core Al Neutral Screen

​

Single Core - compact, circular, stranded Al/XLPE/CuNS/PVC

​

Standards AS/NZS 4961-2003

Conductor: Al 1350 AS/NZS 2848.1

Insulation: XLPE X-90 AS/NZS 3808

Sheath: PVC 5V-90 Black AS/NZS 3808

Test voltage: 3.5kV/5min

​

​

Data sheet

3 core neutral red white blue alu.png

3 Core Al Neutral Screen

​

3 Core compact, circular, stranded Al/XLPE/CuNS/PVC

​

Standards AS/NZS 4961-2003

Core colours: Red (Single), Red, White, Blue (3Core laid up)

Conductor: Al 1350 AS/NZS 2848.1

Insulation: XLPE X-90 AS/NZS 3808

Sheath: PVC 5V-90 Black AS/NZS 3808

Test voltage: 3.5kV/5min

​

​

Data sheet
